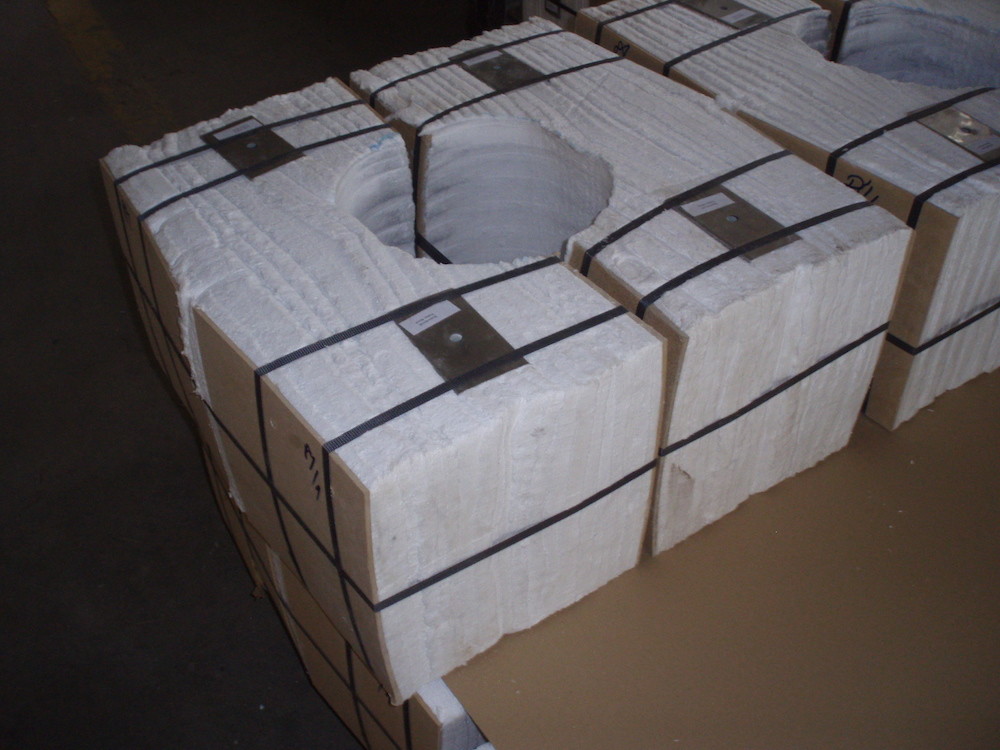

UNIHEAT MODULE
Ceramic fiber modules UNIHEAT MODULE are produced from ceramic fiber blankets. Maximum density is 240 kg/m3.
TYPE

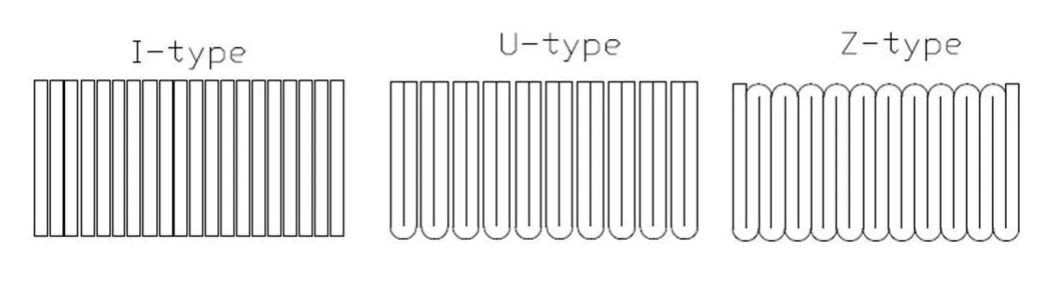

There are 3 standard types of ceramic fiber modules: I-type; U-type; Z-type.
Standard sizes:
Sizes:
Density
Type
300x300x300 mm or on request
180-240 kg/m3
HPS / HTZ / HP
| PRODUCT PROPERTIES | HPS 1260 | HTZ 1425 | HP 1600 | |
| Temperature grade | oC | 1260 | 1425 | 1600 |
| Long term operating temp. | oC | 1160 | 1325 | 1500 |
| Density | kg/m3 | 160-240 | 160-200 | |
| Thermal shrinkage | ||||
| • 1100°C ( 24 hour. ) | % | <3 | - | - |
| • 1300°C ( 24 hour. ) | % | - | <3 | <3 |
| Specific heat - 1000°C | kJ.kg-1.K-1 | 1,13 | ||
| Packaging | on pallets | |||
| Chemical composition | ||||
| • AL2O3 | % | 45-46 | 33-37 | 72 |
| • SiO2 | 51-52 | 47-51 | 28 | |
| • ZrO2 | 13-19 | |||
| Thermal conductivity | 160 kg/m3 | 220 kg/m3 | ||
| • 530°C | W.m-1K-1 | 0,14 | 0,10 | |
| • 810°C | 0,25 | 0,19 | ||
| • 1090°C | 0,35 | 0,28 | ||
Způsoby upevňování

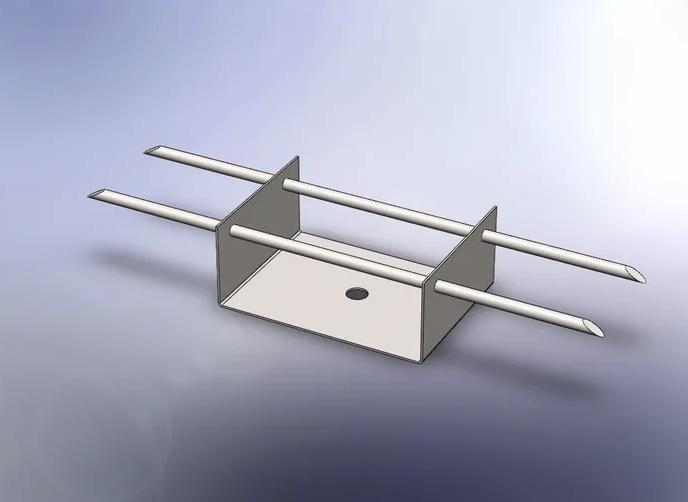

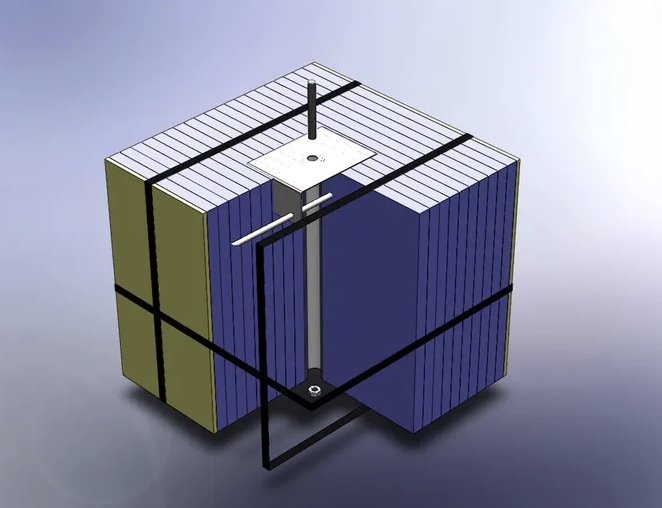

Integrated anchor DPI-1

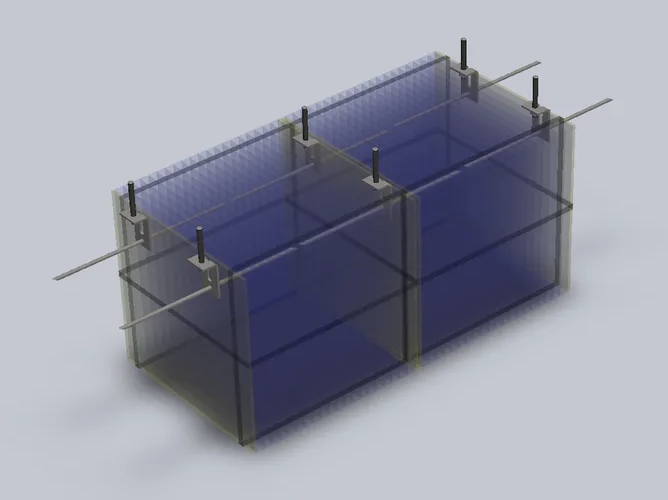

External anchor DPA-1

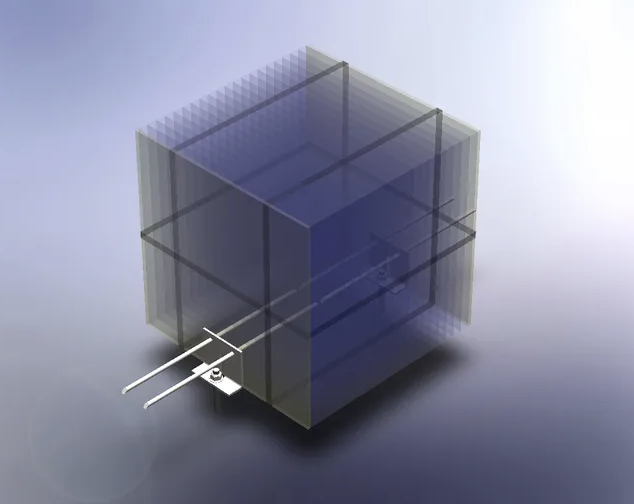

External anchor DPA-2

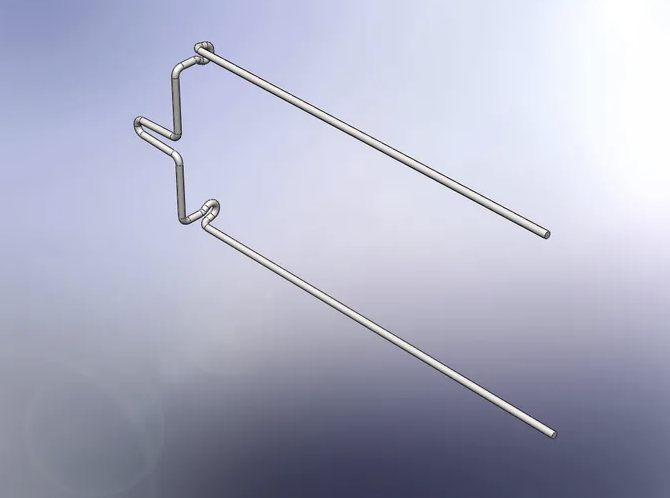

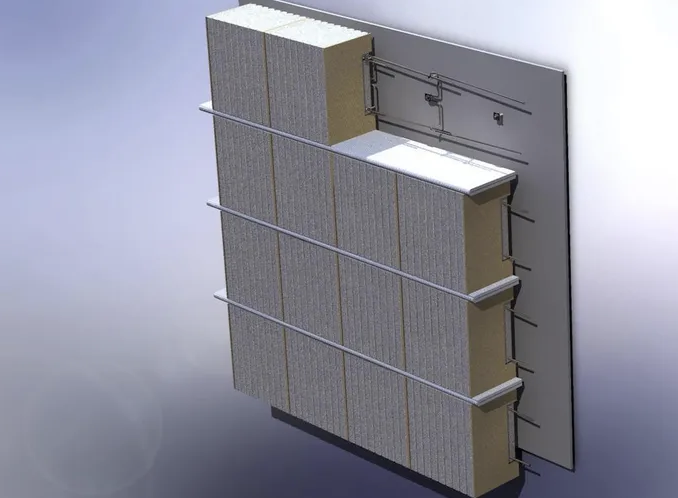

External anchor WEA-1
